Indoor Small Pixel Pitch X1 Series

● Extremely Thin and Light
● Seamless Splicing
● HDR Wide Color Gamut
● High Refresh Rate
● Ultra-Quiet Design


Product Detail

Customer feedback

Product Tags

Indoor Small Pixel Pitch X1 Series

Extremely thin and light | seamless splicing | HDR wide color gamut | high refresh rate | Ultra-quiet design

prod_001
HD

HD Fine

Front-Installation-Front-Maintenance

Front Installation
Front Maintenance

Double-Backup

Double Backup

High-Refresh-Rate_09

High Refresh Rate

Fast-Assembly

Fast Assembly

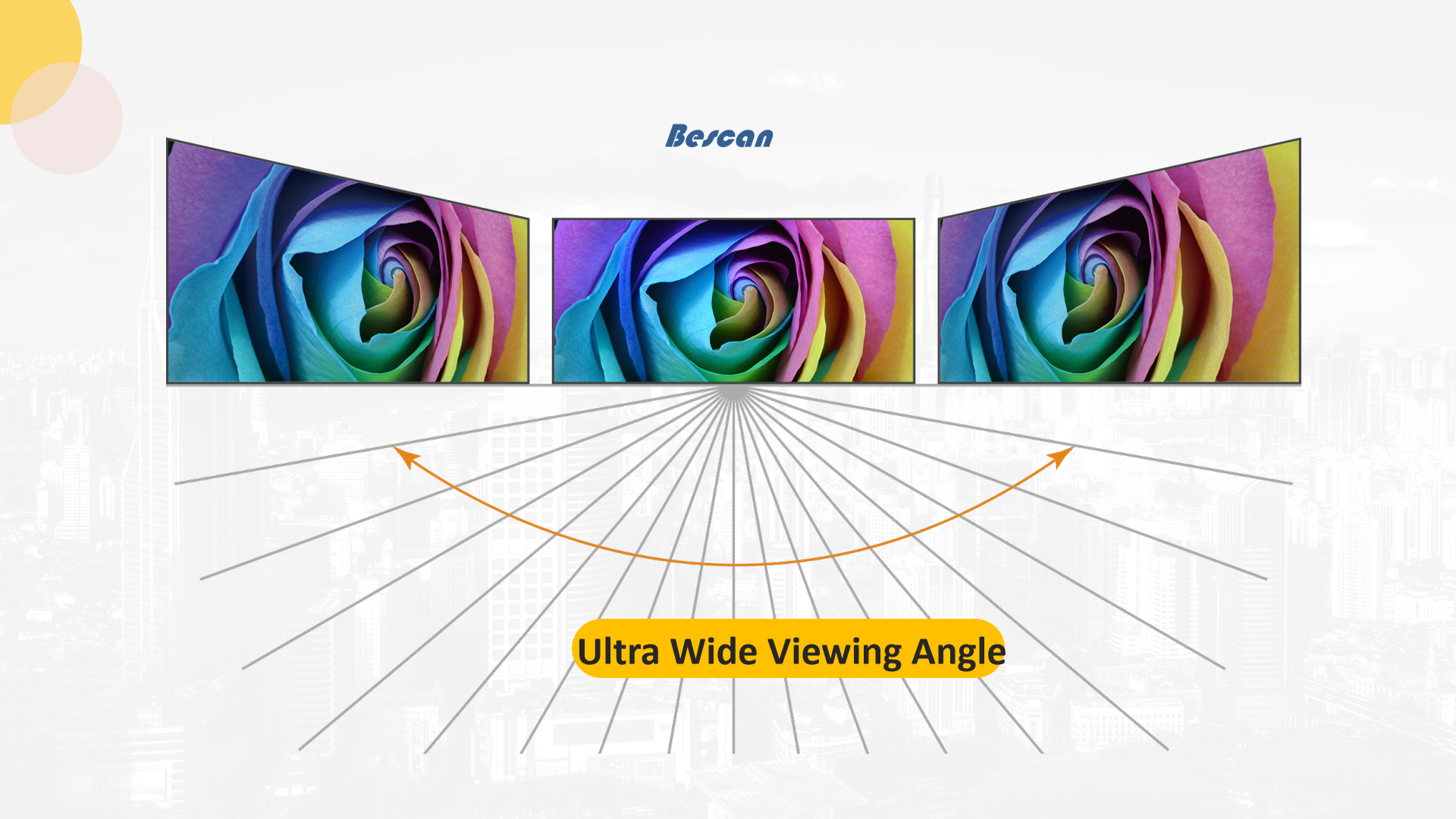

Super-Wide-Viewing-Angle

Super Wide Viewing Angle

Quite-Operation

Quite Operation

High-Gray-Scale

High Gray Scale

Product Structure

The weight of a single box is only 4.5KG, lighter and thinner, Higher appearance reduces the burden of disassembly and assembly, and the user experience is better.

prod_size
prod_weight

Wide Color Gamut + HDR

High color coverage, accurate restoration of natural colors, making the picture more realistic.
HDR can reproduce the height peak of high dynamic range imaging and show more details;

prod1

High Refresh Rate


High Refresh Rate


Low Refresh Rate

High Gray Scale

prod2

Low Gray Scale

prod3

Low Gray Scale

2K/4K/8K/16K Large screen experience, enjoy high-definition

Provides a variety of dot pitch products, and can easily obtain the best high-definition visual experience under different viewing distances.

prod4
prod5
prod6

Front Installation/Front Maintenance

Full front maintenance, fast, accurate and ruthless maintenance.

Seamless Splicing

CNC High-Precision Die-casting Aluminum Cabinet
(Cabinet Flatness≤0.1mm)
Screwless Design, Faster and More Secure Installation
Ultra-quiet Fanless Design

prod7

Installation Ways

Wall mount/Mosaic mount/Hanging mount
Floor installation/arc installation

prod8
Installation_03
icon1_03

 Wall Mount

icon1_05

Mosaic Mount

icon1_07

Hanging Mount

icon1_09

Floor Installation

icon1_11

ARC Installation

Parameters

Pixel Pitch P0.78125 P0.9375 P1.25 P1.5625 P1.875
LED Type Mini4in1 Mini4in1 SMD1010 SMD1010/1212 SMD1010/1515
Density(dots/㎡) 1638400 1137778 640000 409600 284444
Module Resolution 192X216 320X180 240X135 192X108 1608X90
Module Size(wXh) 150X168.75 300X168.75 300X168.75 300X168.75 300X168.75
Cabinet Size(mm) 600X337.5X27.5 600X337.5X27.5 600X337.5X27.5 600X337.5X27.5 600X337.5X27.5
Cabinet Resolution 768X512 640X360 480X270 384X216 320X180
Module Quantity 4X2 2X2 2X2 2X2 2X2
Cabinet Weight(kg) 4.5 4.5 4.5 4.5 4.5
Maintenance Front Front Front Front Front
Cabinet Materials Diecasting Aluminum Diecasting Aluminum Diecasting Aluminum Diecasting Aluminum Diecasting Aluminum
Brightness(Nits) ≥600 ≥600 ≥600 ≥600 ≥600
Color Temperature(K) 1000-18500 1000-18500 1000-18500 1000-18500 1000-18500
Viewing Angle(H/V) 170°/170° 170°/170° 170°/170° 170°/170° 170°/170°
Brightness Uniformity ≥99.8% ≥99.8% ≥99.8% ≥99.8% ≥99.8%
Contrast 10000 : 1 10000 : 1 10000 : 1 10000 : 1 10000 : 1
Frame Rate 50/60 50/60 50/60 50/60 50/60
Drive Mode 1/48 Scan 1/46 Scan 1/45 Scan 1/48 Scan 1/45 Scan
Gray Scale 16bit 16bit 16bit 16bit 16bit
Refresh Rate(Hz) 3840 3840 3840 3840 3840
Max Power Consum(W/㎡) 350 350 350 350 350
Aver Power Consum(W/㎡) 100 100 100 100 100
Waterproof Level IP31 IP31 IP31 IP31 IP31
Input Voltate AC90-264V,47-63Hz
Working Temp(℃/RH) -20~60℃/10%~85%
Storage Temp(℃/RH) -20~60℃/10%~85%
Applicable standard CCC/CE/RoHS/FCC/CB/TUV/IEC
