Indoor Fixed LED Video Wall Display W Series

The W Series was developed for indoor fixed installations requiring front-end repairs. The W Series is designed for wall-mounting without the need for a frame, providing a stylish, seamless mounting solution. With its user-friendly design, the W Series offers an easy maintenance and installation process, making it ideal for a variety of indoor applications.


Product Detail

Customer feedback

Product Tags

Indoor Fixed LED Video Wall Display - W Series

The W Series was developed for indoor fixed installations requiring front-end repairs. The W Series is designed for wall-mounting without the need for a frame, providing a stylish, seamless mounting solution. With its user-friendly design, the W Series offers an easy maintenance and installation process, making it ideal for a variety of indoor applications.

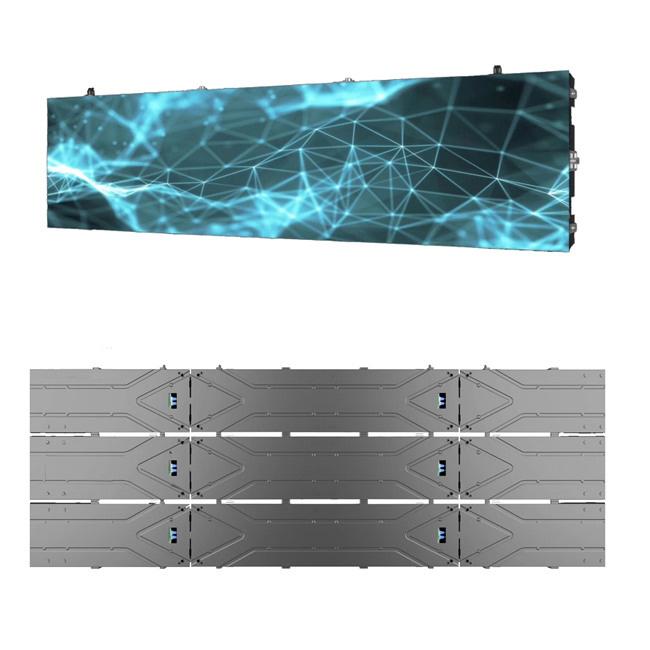

Indoor-Fixed-LED-Video-Wall-Display-W-Series6

Model: P2.6 /P2.976 / P3.91 /P4.81

Indoor-Fixed-LED-Video-Wall-Display-W-Series_02
Indoor-Fixed-LED-Video-Wall-Display-W-Series_05

Light & Thick

Indoor-Fixed-LED-Video-Wall-Display-W-Series_07

Fast Cooling

Indoor-Fixed-LED-Video-Wall-Display-W-Series_09

Easy Maintenance

Indoor-Fixed-LED-Video-Wall-Display-W-Series_11

Dual-face Screen

Indoor-Fixed-LED-Video-Wall-Display-W-Series_13

No Steel Structure

Front Maintenance Design

The LED modules in this design are securely attached using strong magnets. This complete front-end service system can be easily maintained. For optimal maintenance, we highly recommend using a vacuum tool. The front-service design of these magnetic modules ensures easy maintenance and enhances their overall availability.

Indoor-Fixed-LED-Video-Wall-Display-W-Series6_16
Indoor-Fixed-LED-Video-Wall-Display-W-Series7_18

Wall Mounted Led Screen

55mm thickness, aluminum alloy cabinet,
weight below 30KG/m2

Different panel sizes are available, which makes whole led screen size more options.

Indoor-Fixed-LED-Video-Wall-Display-W-Series8_20
Indoor-Fixed-LED-Video-Wall-Display-W-Series8_21

Free Steel Structure Installation

Installation steps

1. Remove led modules
2. Use screws fixed led panels on wall
3. Connect all cables
4. Cover led modules

Indoor-Fixed-LED-Video-Wall-Display-W-Series9_24
Indoor-Fixed-LED-Video-Wall-Display-W-Series9_28
Indoor-Fixed-LED-Video-Wall-Display-W-Series3

Bevel Design

For right angle splicing

Parameters

Items W-2.6 W-2.9 W-3.9 W-4.8
Pixel Pitch (mm) P2.604 P2.976 P3.91 P4.81
LED SMD2020 SMD2020 SMD2020 SMD2020
Pixel Density (dot/㎡) 147456 112896 65536 43264
Module size (mm) 250X250
Module Resolution 96X96 84X84 64X64 52X52
Cabinet size (mm) 1000X250mm; 750mmX250mm; 500X250mm
Cabinet Materials Die casting Aluminum
Scanning 1/32S /1/28S 1/16S 1/13S
Cabinet Flatness (mm) ≤0.1
Grey Rating 14 bits
Application environment Indoor
Protection Level IP45
Maintain Service Front Access
Brightness 800-1200 nits
Frame Frequency 50/60HZ
Refresh Rate 1920HZ or 3840HZ
Power Consumption MAX: 800Watt/sqm;  Average : 240Watt/sqm

Case Presentation

Indoor-Fixed-LED-Video-Wall-Display-W-Series9_31
Indoor-Fixed-LED-Video-Wall-Display-W-Series9_37
Indoor-Fixed-LED-Video-Wall-Display-W-Series9_35
