Fine Pixel Pitch LED Video Wall – H Series
A Captivating World of Ultra-high Definition Visuals
Introducing groundbreaking single-point color correction technology. Experience truly superior color reproduction with stunning accuracy, complemented by smaller pixel pitches. Immerse yourself in a world that unfolds effortlessly before your eyes.

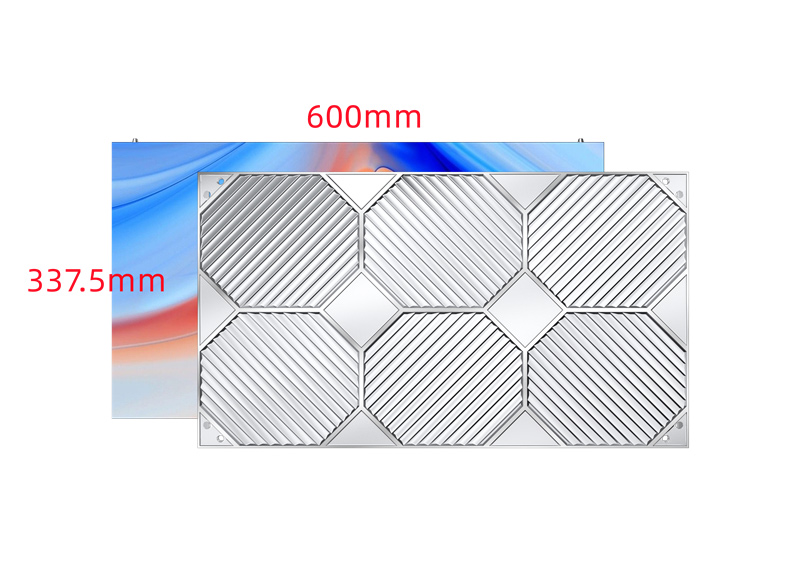

600x337.5mm Standard Size, 16:9 Cabinet Size Ratio.
H Series is designed with a 16:9 ratio to ensure you appreciate every detail with stunning clarity. Measuring 600*337.5mm, it’s the perfect size to immerse yourself in vibrant visuals.
Perfect Cabinet Design
Introducing impeccable cabinet design: combining stunning aesthetics with intuitive layout, easy installation and maintenance for a spectacular visual experience.
Light Weight
The product adopts an ultra-light design, weighing only 5.5 kg, and combines a high-precision aluminum cabinet frame with seamless splicing to provide excellent image and video display. From any angle, it provides the perfect visual experience you want.
100% Front Service Maintenance
100% frontal service design for LED receiving cards, HUB Cards, power supplies, and LED modules. With this advanced design, the LED modules can be easily assembled in the front using magnetic features, providing utmost convenience and efficiency in installation and maintenance processes. Experience seamless integration and effortless handling with our cutting-edge solution.
Parameters
| Items | HS09 | HS12 | HS15 | HS18 |
| Pixel Pitch (mm) | P0.9375 | P1.25 | P1.56 | P1.875 |
| LED | Mini LED | SMD1010 | SMD1010 | SMD1010 |
| Pixel Density (dot/㎡) | 1137770 | 640000 | 409600 | 284444 |
| Module Size (mm) | 300X168.75 | |||
| Module Resolution | 320X180 | 240x135 | 192X108 | 160X90 |
| Cabinet Resolution | 640X360 | 480X270 | 394X216 | 320X180 |
| Cabinet Size (mm) | 600X337.5X52 | |||
| Cabinet Materials | Die casting Aluminum | |||
| Cabinet Weight | 5.5KG | |||
| Scanning | 1/46 S | 1/27 S | 1/27 S | 1/30 S |
| Input Voltage(V) | AC110~220±10% | |||
| Grey Rating | 16 bits | |||
| Application environment | Indoor | |||
| Protection Level | IP43 | |||
| Maintain Service | Front and rear access | |||
| Brightness | 500-800 nits | |||
| Frame Frequency | 50/60HZ | |||
| Refresh Rate | 3840HZ | |||
| Power Consumption | MAX: 140Watt/panel Average： 50Watt/panel | |||
