R Series- VR Stage LED Display
VR Stage LED Display
Angle Adjustment
Front/ Rear Maintenance
High Strength Structure
Tight Connection
Ultra Wide viewing Angle
High Gray Scale
Cabinet Front
- High contrast corrugated light
- Absorbing mask
- Achieve ultra-high contrast
Back of the Cabinet
Ultra thin
Reduced shipping costs and installation labor costs.
Reduce the load bearing of the steel frame structure and enhance the durability.
Cabinet Size
Cabinet Weight
Lighter | Thinner | Smarter
500X500
8KG
Color Reproduction
The ability to restore colors is more powerful, intelligently restore 68.7 billion colors, so as to ensure the realism of images
High Refresh Rate
High Refresh Rate
Low Refresh Rate
High Gray Scale
Low Gray Scale
Low Gray Scale
It Can match with a variety of installation methods
As a rental series product, the convenience and variability of installation are one of the starting points of research and development. It can be assembled into most standard sizes, and can also be hoisted, curved installed, stacked and other methods.
Hanging Installation
Curved Installation
Stack Installation
Schematic Diagram of Cabinets Components
Parameters
| Pixel Pitch | P1.95 | P2.315 | P2.604 |
| LED Type | SMD1515 | SMD1515 | SMD1515 |
| Density(dots/㎡) | 262144 | 186624 | 147456 |
| Module Resolution | 128X128 | 108X108 | 96X96 |
| Module Size(wXh) | 250X250 | 250X250 | 250X250 |
| Cabinet Size(mm) | 500X500X84.5 | 500X500X84.5 | 500X500X84.5 |
| Cabinet Resolution | 256X256 | 216X216 | 192X192 |
| Module Quantity | 2X2 | 2X2 | 2X2 |
| Cabinet Weight(kg) | 8 | 8 | 8 |
| Maintenance | Front/Rear | Front/Rear | Front/Rear |
| Cabinet Materials | Diecasing Aluminum | Diecasing Aluminum | Diecasing Aluminum |
| Brightness(Nits) | ≥1500 | ≥1500 | ≥1500 |
| Color Temperature(K) | 1000-18500 | 1000-18500 | 1000-18500 |
| Viewing Angle(H/V) | 160°/160° | 160°/160° | 160°/160° |
| Brightness Uniformity | 2-50m | 3-50m | 3-50m |
| Contrast | 10000 : 1 | 10000 : 1 | 10000 : 1 |
| Frame Rate | 60/120 | 60/120 | 60/120 |
| Drive Mode | 1/8 Scan | 1/25 Scan | 1/8 Scan |
| Gray Scale | 16bit | 16bit | 16bit |
| Refresh Rate(Hz) | 7680 | 7680 | 7680 |
| Max Power Consum(W/㎡) | 920 | 920 | 920 |
| Aver Power Consum(W/㎡) | 200-300 | 200-300 | 200-300 |
| Waterproof Level | IP31 | IP31 | IP31 |
| Input Voltate | AC90-264V,47-63Hz | ||
| Working Temp(℃/RH) | -20~60℃/10%~85% | ||
| Storage Temp(℃/RH) | -20~60℃/10%~85% | ||
| Applicable standard | CCC/CE/RoHS/FCC/CB/TUV/IEC |

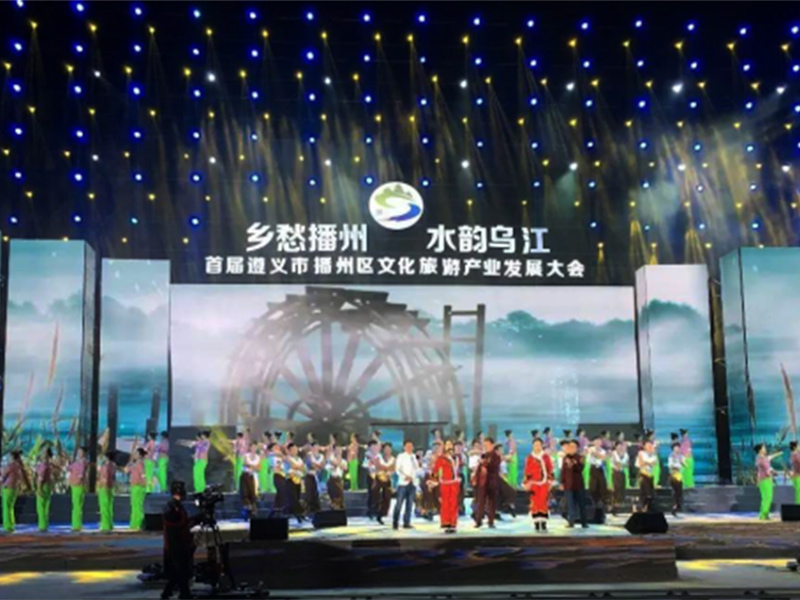

Case Presentation
